Product Details
＋

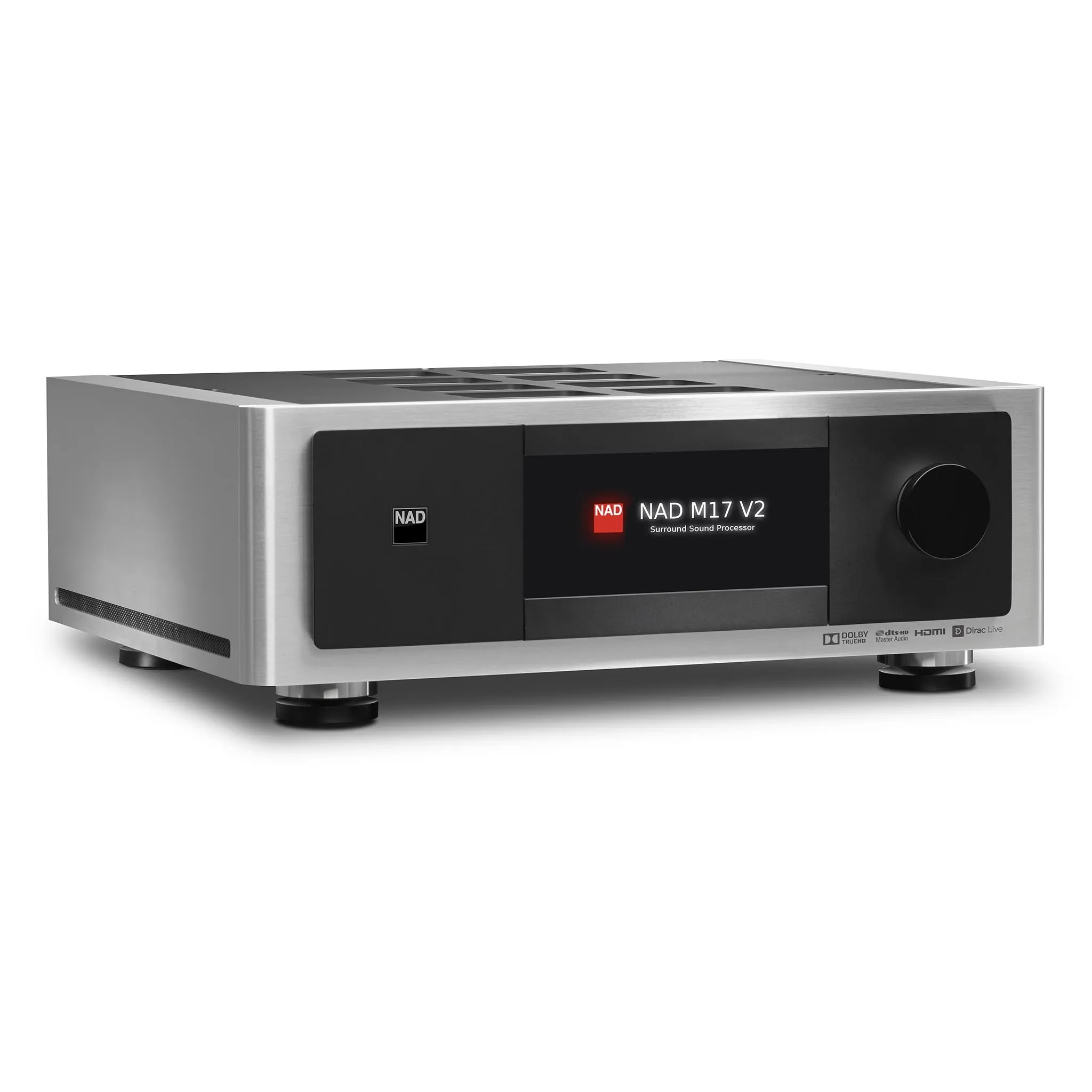

NAD M17 V2i AV Surround Sound Preamplifier
The M17 V2 carries on the enviable task of representing NAD’s finest surround sound performance. Infinite possibilities await thanks to the M17 V2’s most impressive feature, Modular Design Construction (MDC), NAD’s proven method for preventing premature obsolescence. Dolby Atmos and DTS-HD Master Audio combine with Dirac Live Room Correction to deliver hyper-realism that captures every dimension of a performance. Add bit-perfect 4K UHD video processing and the M17 V2 delivers the most accurate sound and image experience you’ve ever had. The M17 V2 is second-to-none in terms of flexibility and up-to-the-minute digital technology.
Specifications
LINE INPUT/PRE OUT
HDMIUp to 4K UHD
Coaxial
0.5 Vpp
Ethernet
RJ45 10/100/1000 Ethernet
LINE LEVEL INPUT
Input Impedance (R and C)56kΩ 220pF
Input Sensitivity
40mV (ref. 500mV out)
Maximum Input Signal
>8Vrms
Signal/Noise Ratio, A-weighted
>90dB (ref. 500mV in, 500mV out, volume set to unity gain)
>80dB (ref. 2V out, volume maximum)
Channel Separation
>70dB (ref. 1kHz / 10kHz)
Frequency Response
±0.3dB (ref. 20Hz – 20kHz, Tone Active)
±0.3dB (ref. 20Hz – 20kHz, Tone Defeat)
Frequency Response (subwoofer out)
10 – 200Hz (ref. -3dB)
XLR
>2Vrms
Maximum output level
>8Vrms into 600Ω
THD (CCIF IMD, DIM 100)
<0.005% (ref. 20Hz – 20kHz, 2V out)
Tone Controls
Treble | ±10dB at 10kHz (ref. 2V in, 2V out)
Bass | ±10dB at 100kHz (ref. 2V in, 2V out)
>2Vrms
Maximum output level
>8Vrms into 600Ω
THD (CCIF IMD, DIM 100)
<0.005% (ref. 20Hz – 20kHz, 2V out)
Tone Controls
Treble | ±10dB at 10kHz (ref. 2V in, 2V out)
Bass | ±10dB at 100kHz (ref. 2V in, 2V out)
Standby power
<0.5W
Unit Dimension (WxHxD) – Gross*
435 x 156 x 386mm
17 1/8 x 6 3/16 x 15 1/4 inches**
Net Weight
10.9kg (24lb)
Shipping Weight
17.5kg (38.6lb)
<0.5W
Unit Dimension (WxHxD) – Gross*
435 x 156 x 386mm
17 1/8 x 6 3/16 x 15 1/4 inches**
Net Weight
10.9kg (24lb)
Shipping Weight
17.5kg (38.6lb)
