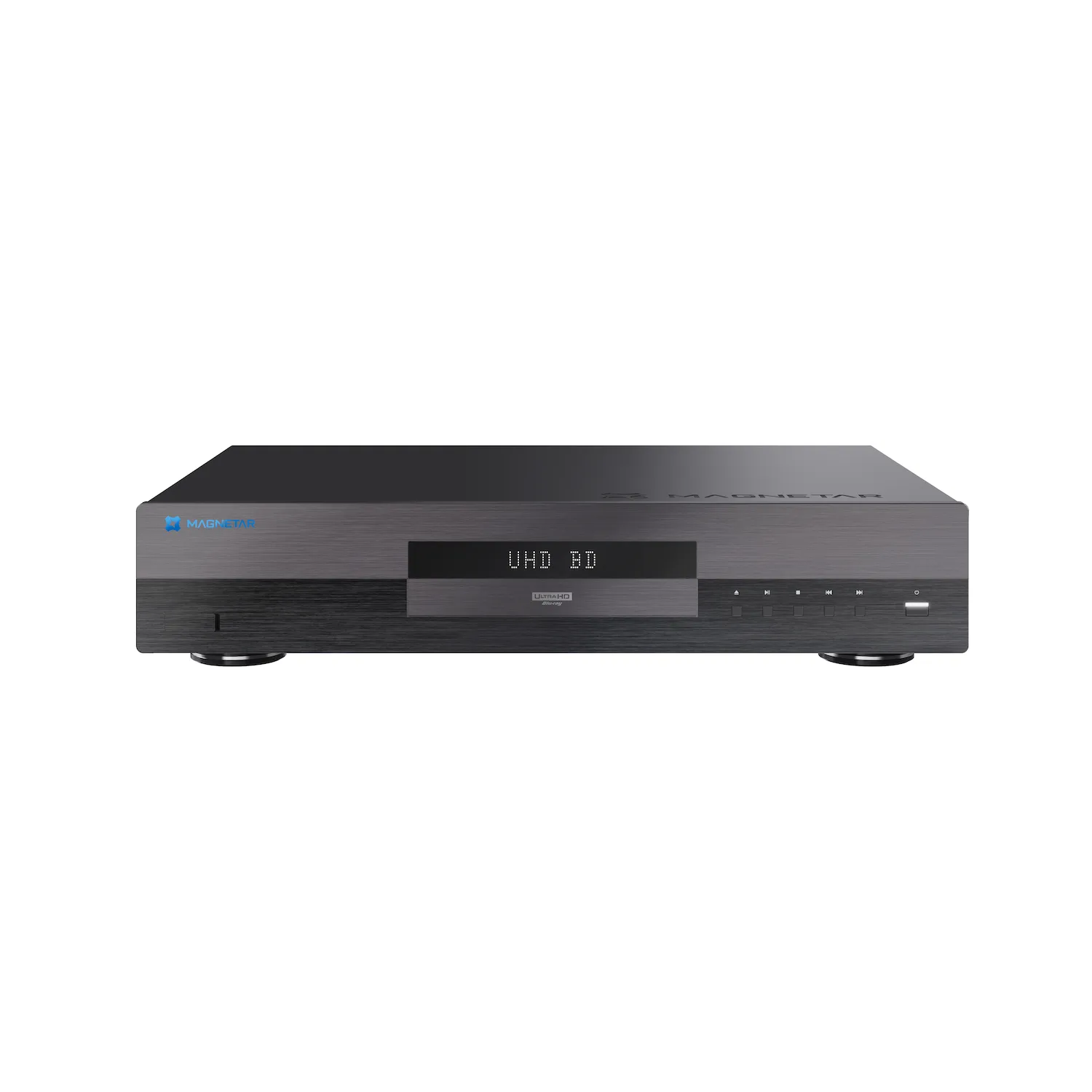

Magnetar UDP-800 4K UHD Blu-ray player
Equipped with the famous professional quad-core system Media Tek MT8581 chipset, the UDP800 4K UHD Blu-ray player features advanced image decoding and processing technology, with 4K ultra HD and HDR support, including Dolby Vision and HDR10 , providing clear and sharp picture and rich colors. With its metal body while being elegant and durable, hi-end audio components and a custom transformer, the 4K UHD Blu-ray player UDP800 exudes the beauty of science and technology in simplicity and introversion, and makes your audio-video life even better.
|
A Reference In Image Quality The UDP800 can play DVDs, Blu-rays, 4K UHD discs and even media files, featuring h265 & H264 support. Picture quality is sharp and clear, with crisp details pleasing to the eye. |
|
|
HDR Technology The UDP800 has eye-popping brightness, contrast and gorgeous colors. Picture is rich and full, with vivid colors, even in low light and backlight environment. UDP800 supports HDR10, HDR10 and Dolby Vision with stunning HDR to SDR conversion, with BT.2020/BT.709/BT.601 color space support. |
|
|
4K UHD Blu-ray The UDP800 can convert low resolution video sources up to 4K 50/60Hz (3840 x 2160) resolution. Four times the resolution of full HD 1080p, enhancing home video experience. |
|
|
High Fidelity Lossless Music The UDP800 can decode DSD64/128, multi-channel DSD64, and 192kHz/24-bit PCM formats with AIFF, ALAC, APE, FLAC and WAV audio file support. Enjoy 4K hd picture quality without missing every detail of sound. UDP800 supports Dolby TrueHD and DTS-HD Master Audio, as well as Dolby Atmos and DTS-X, enabling you to enjoy the best panoramic sound and immersive experience. |
Specifications
| Disc type | UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD-SACD, CD, Kodak Picture CD, CD-R/RW, DVD±R/RW, DVD±R DL, BD-R/RE |
| Output | |
| Analog audio: | stereo |
| Independent stereo analog audio: | XLR balanced output, RCA output |
| Optical/coaxial audio: | up to 2 channels /192kHz PCM, Dolby Digital, DTS |
| HDMI audio: | up to 7.1 channel /192kHz PCM, up to 5.1 channel DSD, Bitstream |
| HDMI video: | UHD/p24 1080/1030p / 1030I / 720p / 576p / 576I / 480p / 480I |
| Analog audio characteristics | |
| Frequency range: | 20HZ-20khz (-3dB ~ 0.05dB) |
| Signal-to-noise ratio: | & GT: 120dBr |
| Total harmonic distortion Noise: | & LT: 0.00018% |
| Output level: | (RCA) 2. l±0.2Vrms. (XLR) 4.2±0.4Vrms |
| Dynamic range: | AGT: 120dB |
| Channel separation: | & GT: 120dB |
| General specification | |
| Power supply: | AC 100-240V ~, 50/60Hz |
| Power | : 30 W (Standby: 0.5W in energy saving mode) |
| Size: | 430 mm x 300 mm x 90 mm |
| Weight: | 8kg |
| Working temperature: | 41° F – 95° F 5° C – 35° C |
| Working humidity: | 15% – 75% |
