AIM Series 2 breaks new ground by adapting technology that was once only utilized in large sound reinforcement experiences. By incorporating multiple tweeters in a line array, AIM Series 2 delivers focused high frequencies farther into the listening area than standard tweeter configurations so that listeners may enjoy a larger sweet spot. Complementing the ARC Tweeter Array is our updated WavePlane technology that acts as an acoustic lens, focusing the high frequency audio energy into the listening environment for a cleaner, wider, and richer sound. But it's the enhanced aim-ability of the AIM Series 2 that presents all new options for sound design-from home theater to whole home audio. Simply put, every element of the AIM Series 2 has been recrafted for heightened aesthetics and heightened sound.AIM Series 2 breaks new ground by adapting technology that was once only utilized in large sound reinforcement experiences. By incorporating multiple tweeters in a line array, AIM Series 2 delivers focused high frequencies farther into the listening area than standard tweeter configurations so that listeners may enjoy a larger sweet spot. Complementing the ARC Tweeter Array is our updated WavePlane technology that acts as an acoustic lens, focusing the high frequency audio energy into the listening environment for a cleaner, wider, and richer sound. But it's the enhanced aim-ability of the AIM Series 2 that presents all new options for sound design-from home theater to whole home audio. Simply put, every element of the AIM Series 2 has been recrafted for heightened aesthetics and heightened sound.

• For use as a surround effects speaker due to its wide dispersion characteristics
• Flangeless appearance
• 7" Aluminum Cone Woofer with 15 degrees Pivoting Capability

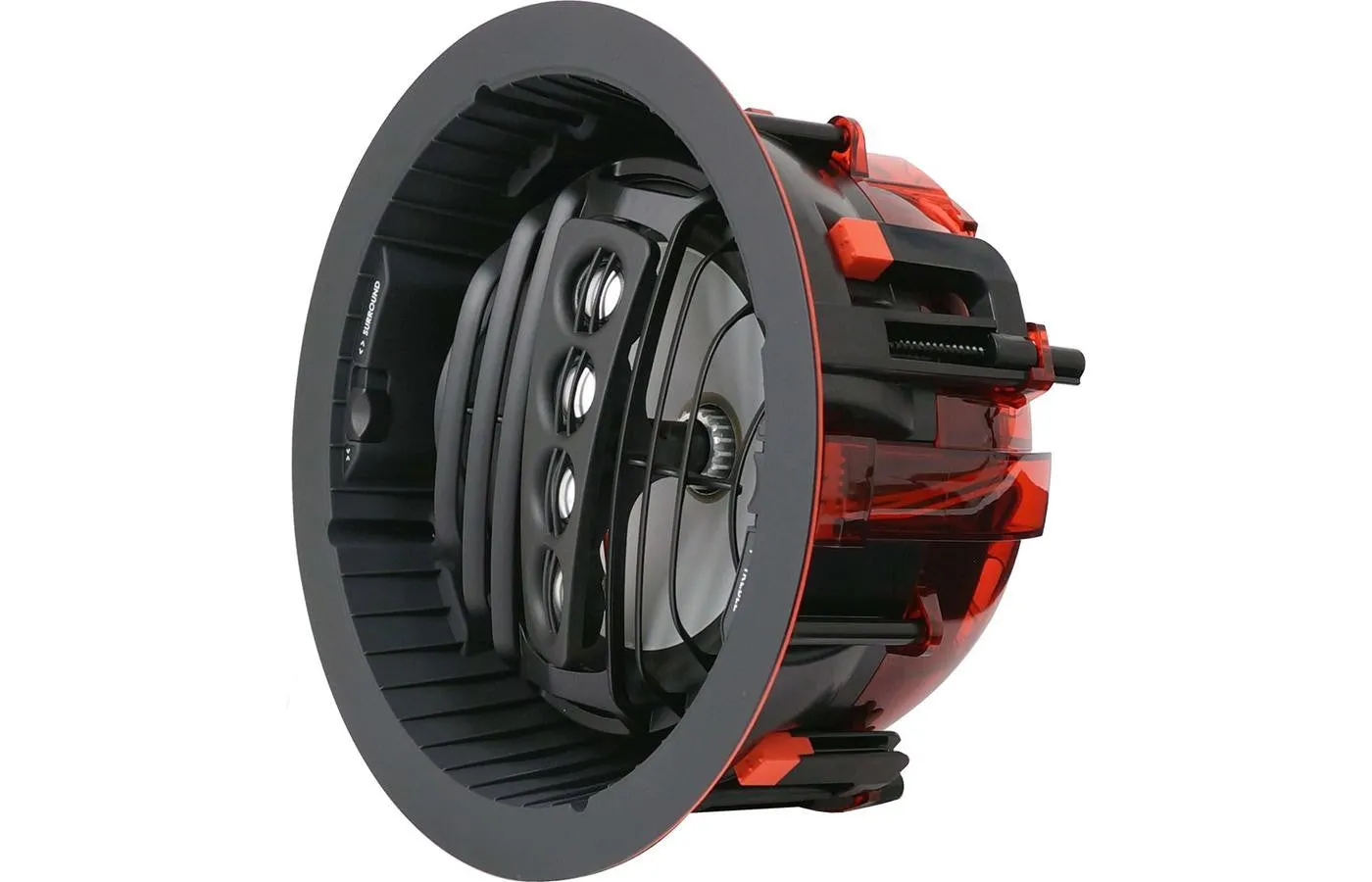

• Multi-Axis ARC Tweeter Array incorporating four (4) - 5/8" Aluminum Dome Tweeters with 15 degrees Pivoting & 359 degrees Rotational Capability
  • The Multi-Axis ARC Tweeter Array adds a "slight twist" to the ARC array putting two of the 5/8" Aluminum Dome Tweeters on a slightly different axis than the other two
• WavePlane Technology with Vortex Eliminators
• Acoustic Isolation Technology to minimize acoustic energy transfer to mounting and surrounding surfaces
• Front-Mounted Switches Allow for up to /- 3dB of Treble Adjustment and for the selection of Direct or Diffuse Sound Characteristic
• Timbre-Matched to all THREE Level Speakers
• Sensitivity: 89db 1W/1m
• Maximum SPL: 109dB
• Power Handling: 150 Watts
• Impedance: 8 Ohm Nominal
• Frequency Response: 40Hz-20kHz
• Diameter x Depth: 9 5/8" x 5 1/2" (244mm x 140mm) (with Grille)
• Cut-Out Diameter: 8.27" or 8 1/4" (210mm)
