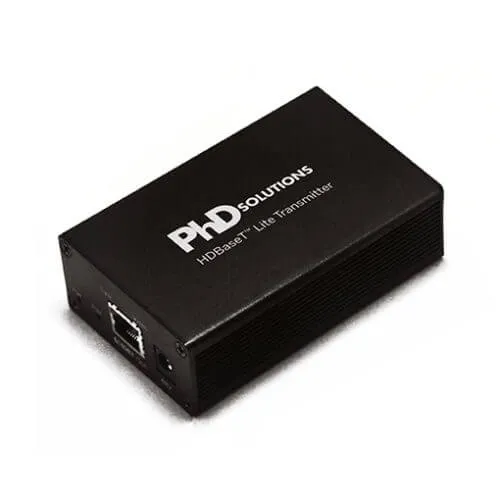

PhD HDMI HDBaseT Lite Transmitter
up to 70m @ 1080P & 40m @ 4k
Check Stock Instore
Using HDBaseT™ technology, this HDMI slimline receiver balun offers an ideal solution the extension of HDMI up to UHD resolutions over Cat 5e,6 or 7 without compromising audio or video quality.
Fully HDCP compliant with built-in support for HDMI-CEC and Infra-Red distribution for controlling your sources.
Extend 4K up to 40 Meters and 1080p to 70 Meters over Cat5e/6/7
- Wall Mountable
- Low Power
- UltraHD 4K Transmission, 1080p@60Hz/36-bit, 720p, VGA-WUXGA formats.
- Bi-Directional Infra-Red Transmission
- Full HDMI Audio support
- HDCP Compliant
- PoH Transmitter
Specifications
| Dimensions (WxHxD): | 8.2 cm / 1.8 cm / 0.7 X11.5 cm / 4.5 inches |
| Weight: | Transmitter & Receiver 10.17 kg / 0.4 lb each |
| Material: | Extruded Aluminium |
| Operating Temperature Range: | 0 to 40°C (32 to 104°F) |
| Operating Humidity Range: | 20 to 90% RH (no condensation) |
| Power Supply: | 1 x 48V (Supplied with TX only) PoH ( Powered by Transmitter over CAT cable) |
| Power Consumption: | Transmitter 3W Receiver 5.5W |

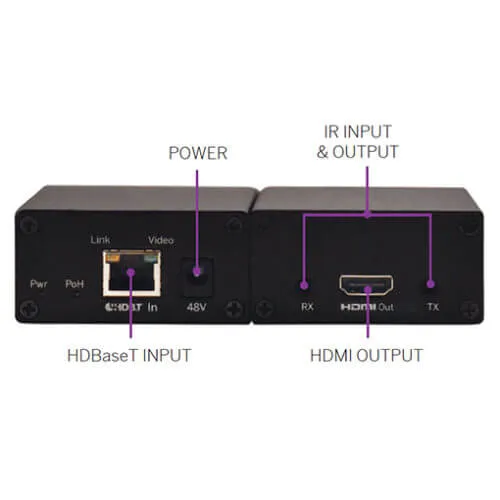

| Video Input: | Transmitter 1 X HDMI 2.0a Receiver 1 X HDBaseT Class B (Lite) |
| Video Output: | Transmitter 1 X HDBaseT Class B (Lite) Receiver 1 X HDMI 2.0a |
| Colour Supported: | 4K/24bit, 1080p/36bit |
| Max Video Bandwidth: | 300MHz/10.2Gbps |
| Encryption: | HDCP 1.4 and HDCP 2.2 |
| Supported Video Resolutions: | 720p, 1080i, 1080p ( 3D), 4k (30Hz) 4:4:4, 4k (50/60Hz) 4:2:0 |
| Supported Audio Formats: | PCM 2.0, LPCM 2.0, LPCM 5.1, LPCM 6.1, LPCM 7.1, Dolby Digital 2.0, Dolby Digital 5.1, Dolby Digital EX 6.1, Dolby Digital Plus 7.1, Dolby TrueHD 5.1, Dolby TrueHD 7.1, Dolby Atmos 5.1.2, Dolby Atmos 5.1.4, Dolby Atmos 7.1.2, Dolby Atmos 7.1.4, Dolby Atmos 9.1.2, DTS 5.1, DTS-HD Master 5.1, DTS-HD Master 7.1, DTS 96/24 5.1, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1 |
| ESD (Lightning) Protection: | ± 8kV (Air-gap discharge) ± 4 kV (Contact discharge) |
