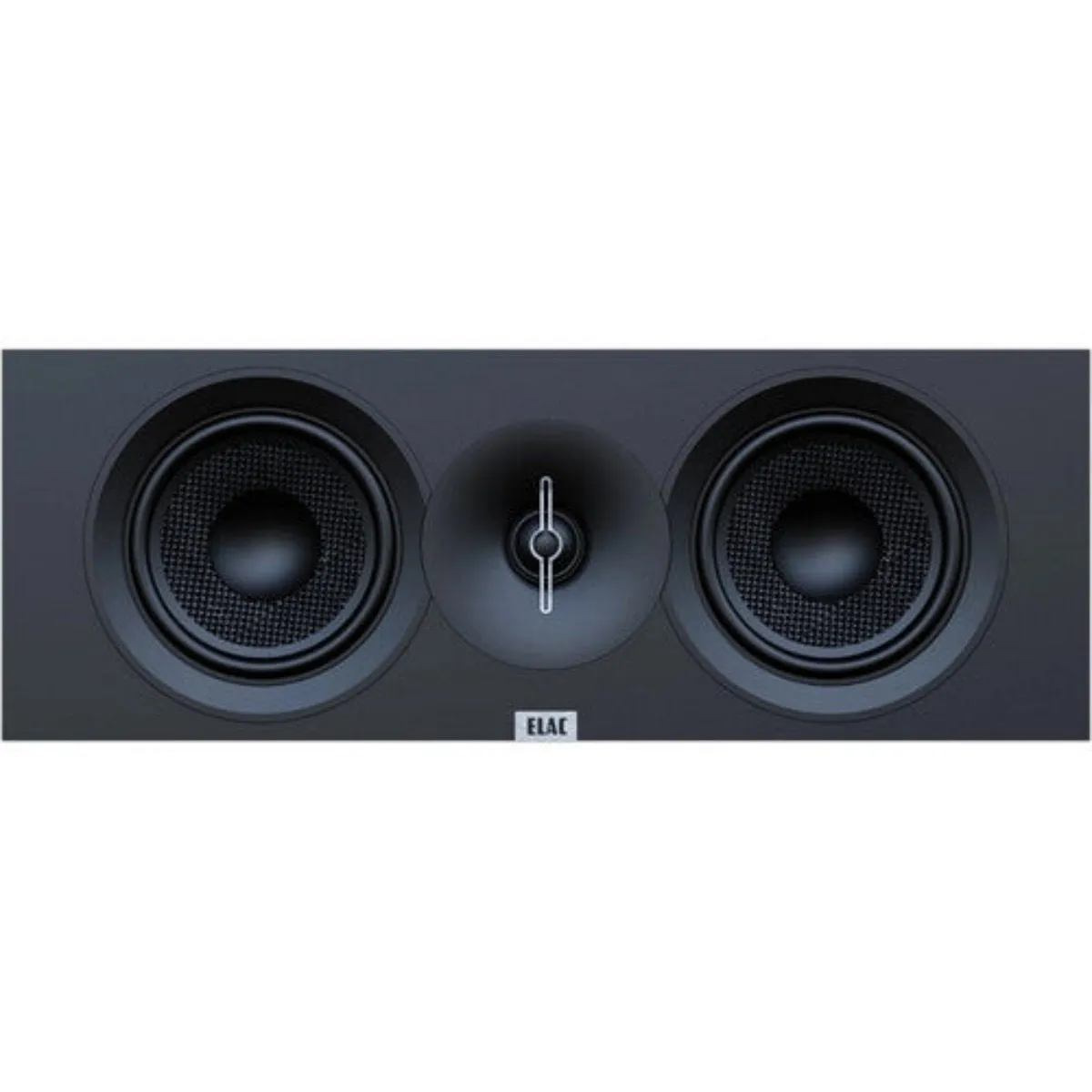

Hear voices clearly and complete your surround-sound speaker setup with the ELAC Debut 3.0 DC63 Center Channel Speaker. The DC63 features a 2-way horizontal speaker design, with dual 6.5" aramid fiber mid/bass woofers and ELAC's bespoke 1" aluminum dome tweeter. Pair it with ELAC Debut 3.0 floorstanding and bookshelf speakers to form a matched multi-channel surround-sound system. A sealed cabinet design helps eliminate unwanted noise to provide accuracy and clarity. Constructed from durable black ash-finished MDF, with a magnetic grille and rubber feet, the DC63 speaker delivers high-quality sound and aesthetics for dialog reproduction in surround sound applications.
Warranty:
2-year manufacturer's warranty
Features:
- 2-Way Speaker with 70W Nominal Power
- Horizontal Center-Channel Design
- 1" Aluminum Dome Tweeter
- 2 x 6.5" Aramid Fiber Cone Woofers
- Sealed Cabinet
- CARB2 Rated 16mm MDF Cabinet
- Dual 5-Way Binding Posts
- Magnetic Grille
Video:
Aluminum Dome Tweeter
ELAC's 1" aluminum tweeters undergo rigorous calibration to enhance the distinct acoustic properties of the speakers they are part of. The stiff and light construction allows for accurate reproduction of high frequencies with remarkable clarity and detail, as well as a wider dispersion pattern.
Aramid Fiber Woofers
The Debut 3.0 Series boasts aramid fiber woofers, known for their light yet robust build, enduring quality, and reliable output. The high stiffness-to-weight ratio ensures tight and accurate bass response, delivering punchy and well-defined low frequencies with minimal distortion.
Internally Braced
The internal bracing of ELAC's Debut 3.0 speakers enhances structural integrity, resulting in reduced resonances and improved overall sound quality.

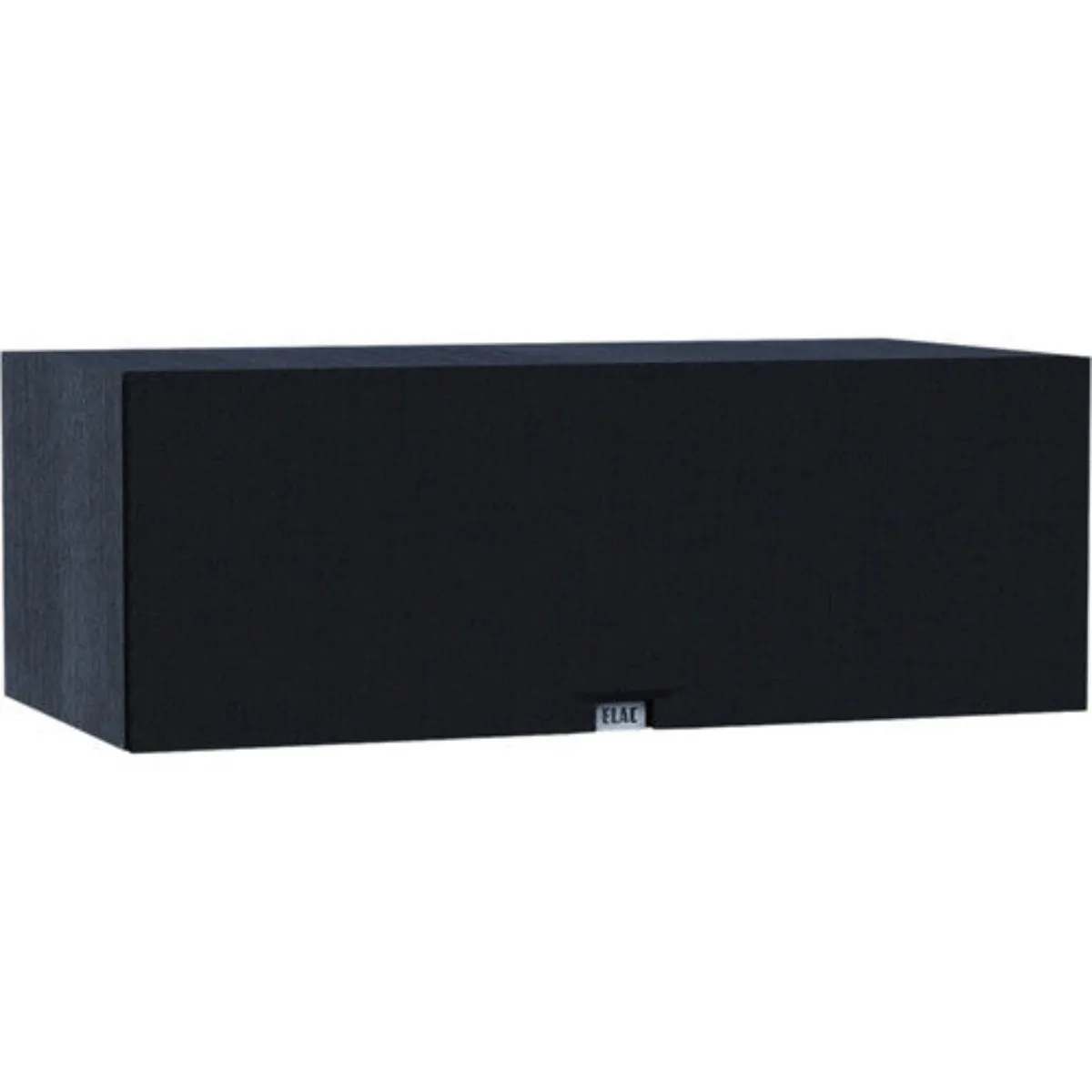

Improved Cosmetics & Magnetic Grilles
The ELAC Debut 3.0 series speakers have undergone a significant cosmetic upgrade, enhancing both their visual appeal and functional design. Magnetically attached grilles offer a clean, hardware-free look that can be quickly removed or attached for those who prefer the exposed driver aesthetic.
Technical Specifications:
Speaker Type | 2-Way, Sealed |
---|---|
Frequency Response -6 dB: | 50 to 38Khz |
Nominal impedance | 6 Ω |
Sensitivity @2.83 v/1m | 87.5 dB |
Crossover Frequency | 2000 Hz |
Recommended Amplifier Power | 30 - 140 W |
Peak Power Handling | 120 W |
Tweeter | 1 - inch Aluminum dome |
Woofer (aramid-fiber) | 2 x 6 1/2" |
Cabinet | CARB2 rated 16mm MDF |
Cabinet Finish | Black Ash vinyl, Satin Black Vinyl Front |

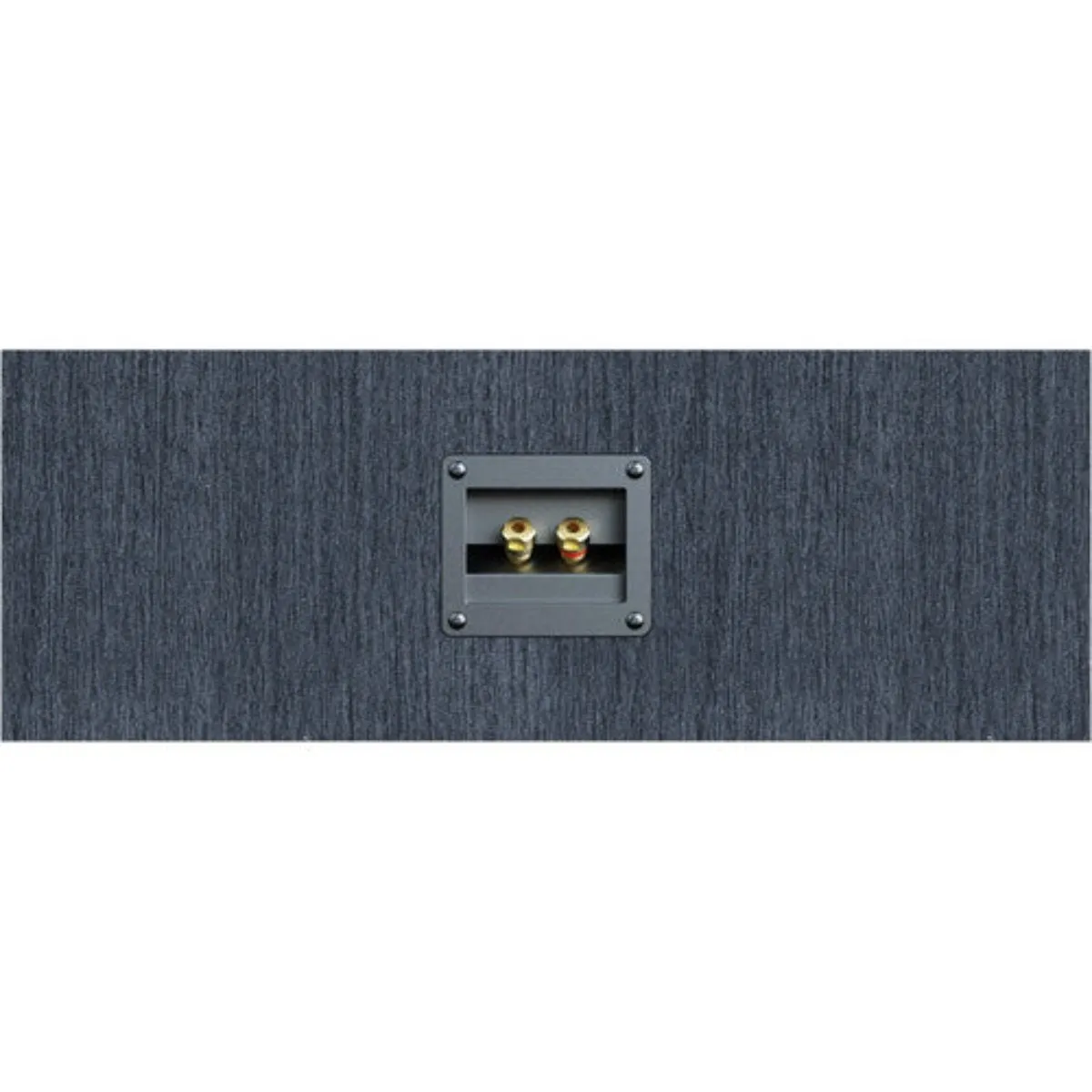

Binding Post | 5-way metal |
Width | 21.0 in / 533 mm |
Height | 7.7 in / 195 mm |
Depth | 11.7 in / 298 mm |
Net Weight | 23.6 lbs / 10.7 kg |
